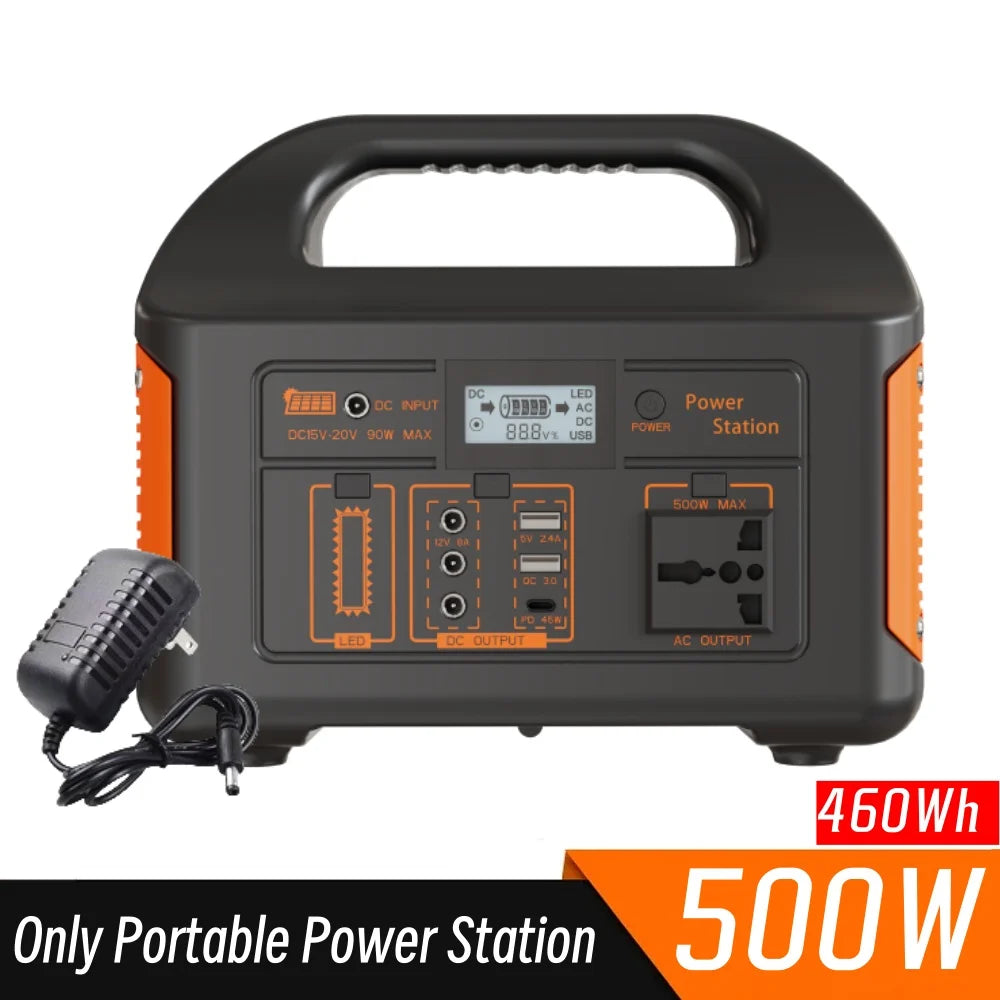

New Arrival Outdoor Portable 500W Power
New Arrival Outdoor Portable 500W Power
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Loyleax
Hign-concerned Chemical: None
Set Type: Charger Sets
Model Number: 500W Portable Power Station
Nominal Capacity: 460Wh
Type: LiFePO4
Size: A
Plug type: UK/EU/US according to your choice
Number of cycles: 3000+
Battery type: LiFePO4

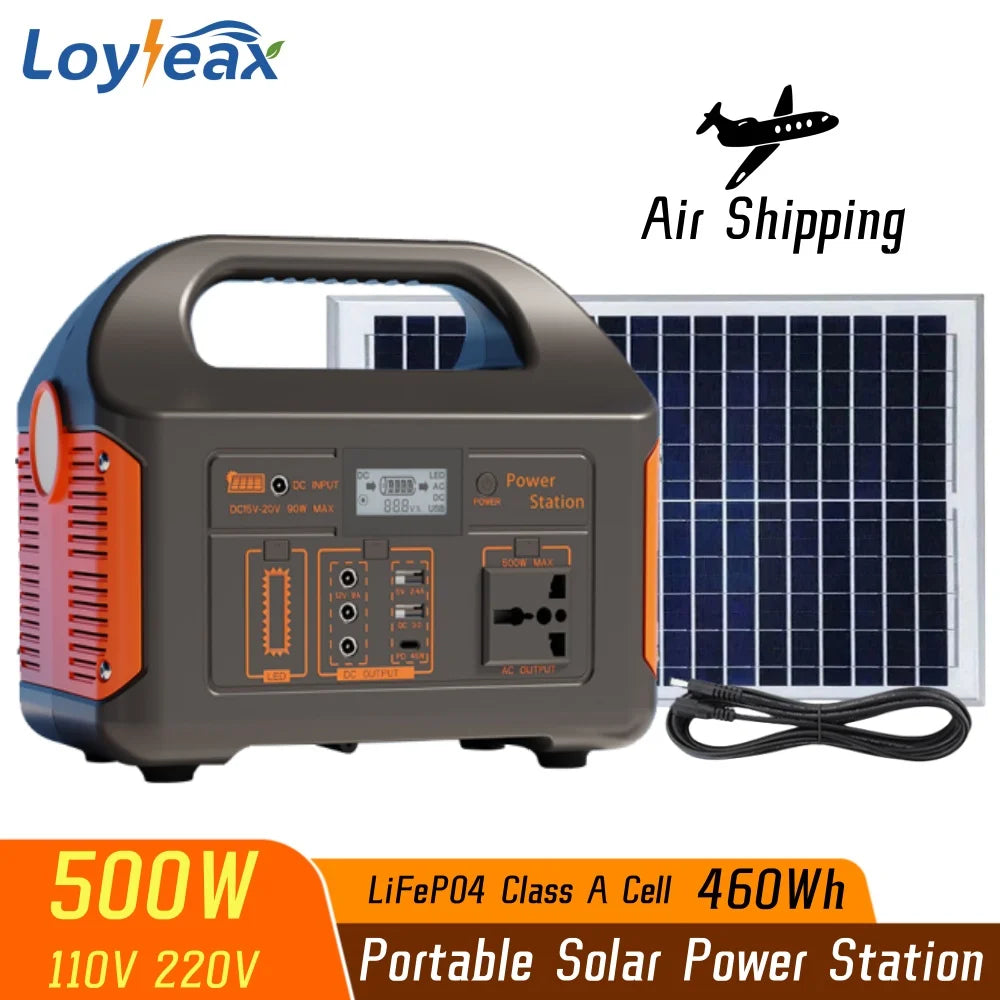

New Arrival Outdoor Portable 100W 300W 500W Power Station Power Generator with Solar Panels 110V 220V LED Light Emergency Solar Power Bank for Home Camping
Specification：
Number of cycles: 3000+
Shell material: ABS
Battery specifications: LiFePO4
Battery Capacity: 76.8Wh/230Wh/460Wh
AC Output Rated Power: 100W/300W/500W
AC Output voltage: 110V，220V
AC Output Frequency: 50Hz/60Hz
AC Output Socket: Universal Socket
☆5 devices use electricity at the same time
☆Comes with LED lights
☆Digital display screen
☆Class A brand new battery cells
☆Lightweight & portable
☆DC/AC fully isolated.
☆High frequency design, small size
☆Pure copper transformer, high efficiency, low no-load loss.
☆Microprocessor, digital control, all-round protection.
☆Built-in solar charger, inteligent charge and discharge management.
☆AC output and DC output have independent switch function.
Rated Power |
100W |
300W |
500W |
Output Waveforr |
Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ±0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||

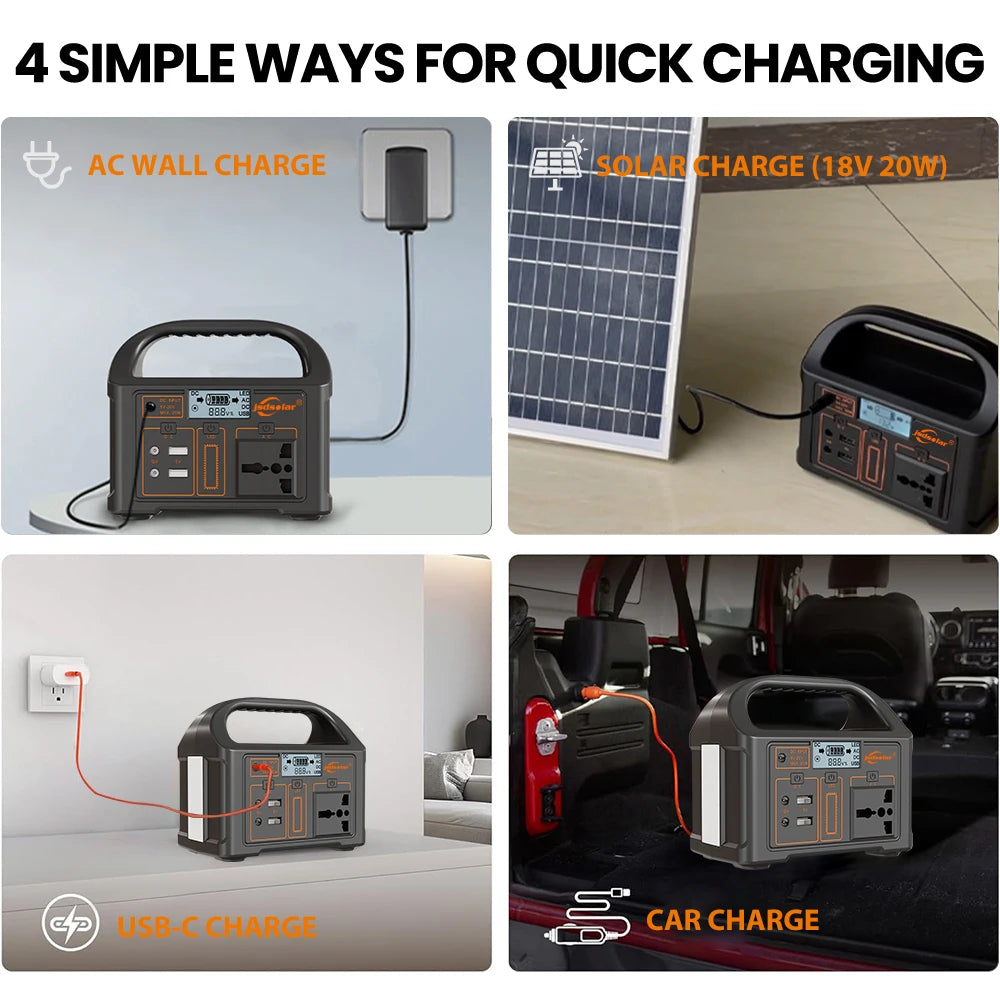

Charging interface |
Charger Port and Solar Panel Charging Port DC5521 |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2*USB； |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3* DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing, |
LED high beam,low beam.bight,half bight, |
|
Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours ot |
||
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance ＜45dB |
||
Protection Functions |
Low Voltage, Over voltage, Over |
||
Description of protection functions and application scenarios:
1. Protection functions: over voltage protection, over current protection, over temperature protection, over charge protection, short circuit protection, under voltage protection
2. Application scenarios: home emergency power supply, outdoor camping power supply, night construction power supply, emergency rescue power supply, etc.
Use load type:
1. AC fans, DC fans, AC LED lights, DC LED lights, digital products, mobile phones, desktop computers, notebook, computers, TVs, vacuum cleaners, etc.
2. The LCD cannot be turned off when the solar energy and DC charger are connected. Press each key to turn off each output.
3. When there is no charge and no output is turned on, the portable power station will automatically shut down after 10
seconds.
Note: The machine has DC under voltage and over voltage protection functions. When the battery is under voltage or over voltage, the portable power station will automatically shut down.
Package List：
1 x Power Station
1 x Charger
1 x Product Manual
